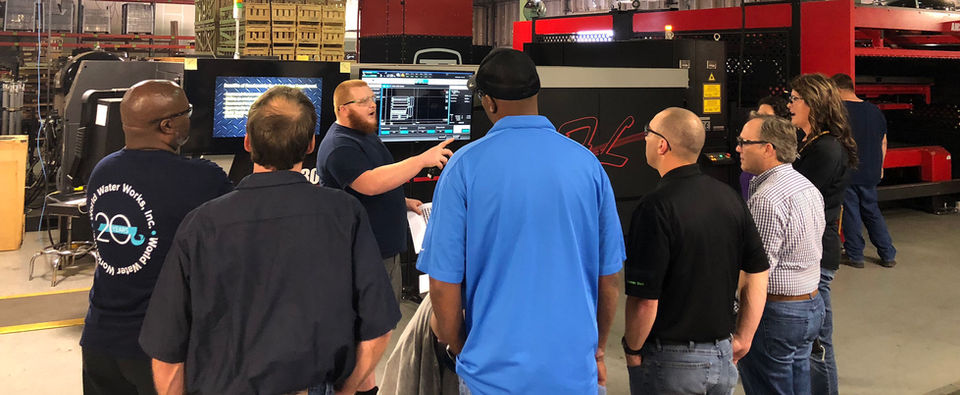

CNC Laser

Amada LCG 3015 AJ

4Kw Fiber Optic Laser

5ft. X 10ft. Max. worksheet size

2029 lb. Max. Worksheet Mass

Automated sheet load/unload

​

CNC Punch Press

TRUMPF TRUE PUNCH 3000 (S11)

17 STATION, 3 CLAMPS,

18 TON MAX PUNCH FORCE, 4258 IPM MAX SPEED,
.251 MAX MATERIAL THICKNESS, 330 LB. MAX MATERIAL WEIGHT,

TAPPING, MULTI TOOL, MULTI BEND, MULTI SHEAR,

ROTARY CUTTER, ROLLER PINCH AND BEAD, ROLLER OFFSETTING,

​

Press Brake Equipment

TRUMPF TRUE BEND 3120

T3000 CONTROL WITH 3-D GRAPHICS AND NETWORKING

PRESS FORCE: 132 TONS, BENDING LENGTH 122"

WIDTH BETWEEN COLUMNS:106"

THROAT: 16.5", STROKE: 8"

OPEN HEIGHT 13.5", SHUT HEIGHT 8.5"



SafanDarley E-Brake B 35-1250

EC 20 Control with 3-D Graphics and Networking

Press Force: 35 Tons, Bending Length 49"



ACCURPRESS MODEL 7606

PRESS FORCE 60 TONS, BENDING LENGTH 72"

WIDTH BETWEEN END FRAMES 72",

THROAT DEPTH 8", STROKE 8"

OPEN HEIGHT 14", SHUT HEIGHT 6"

​

Hardware Insertion Equipment

Haeger Hardware Insertion Machine, Model HP6-B

​

Welding Capability

Full Internal Production Welding Capability, Aluminum and Steel

​

Spot Welding

H & H SPOT WELDER

WITH BENARD WATER CHILLER AND HAKO SMOKE ABSORBER



Peer Spotwelder, Model AR-450

WITH BENARD WATER CHILLER

​

Automatic Presses

Komatsu

150 METRIC TON CAPACITY

78.75" Wide x 29.87" DEEP BOLSTER PLATE

62.93" WIDE x 21.62" DEEP RAM PLATE

SHUT HEIGHT: MIN. 14.17" to MAX 18.11", STROKE: 7.87"

LITTELL DE-COILER AND FLATTENER, 12" WIDE CAPACITY

PA SERVO ROLL FEED MODEL SRF-12

AIR FEED, INC. MODEL AF-5, PULL THRU FEEDER\ FLATTENER



110 METRIC TON CAPACITY

43.25" WIDE x 27.5" DEEP BOLSTER PLATE

23.5" WIDE x 21.75" DEEP RAM PLATE

SHUT HEIGHT: MIN 8.125" to MAX 12.062", STROKE: 5.91"

PA  SERVO ROLL FEEDER, MODEL PA SERVO ADVANTAGE 2012

PERFECTO STRAIGHTENER, MODEL 2-16-7-STCC

MATERIAL DECOILER, NMTBA MODEL 2.5M 18



80 METRIC TON CAPACITY

39.25" WIDE x 23.5" DEEP BOLSTER PLATE

19.5" WIDE x 15.5" DEEP RAM PLATE

SHUT HEIGHT: MIN. 10.625" to MAX 13.812", STROKE: 5.12"

HUB CITY DYNAMIC FEEDER, MODEL 896-#2281

LITTELL STRAIGHTENER, MODEL 308-5PD

PERFECTO MATERIAL DECOILER, MODEL 12-R-SM

​

60 METRIC TON CAPACITY

35.25" WIDE x 21.5" DEEP BOLSTER PLATE

19.5" WIDE x 15.75" DEEP RAM PLATE

SHUT HEIGHT: MIN. 9.062" to MAX 11.812", STROKE: 4.72"

PA  SERVO ROLL FEEDER PA SRF-200 ULTRA 8

ROWE STRAIGHTENER, MODEL A-20

MATERIAL DECOILER, MODEL

​

60 METRIC TON CAPACITY

35.25" WIDE x 21.5" DEEP BOLSTER PLATE

19.5" WIDE x 15.75" DEEP RAM PLATE

SHUT HEIGHT: MIN. 9.062" to MAX 11.812", STROKE: 4.72"

SERVO-MAX SERVO ROLL FEED, SMX SE-12

CWP SERVO ROLL FEED, MODEL SM5-12

CWP MATERIAL DECOILER, MODEL 4RM-18

​

35 METRIC TON CAPACITY

27.5" WIDE x 15.5" DEEP BOLSTER PLATE

13.75" WIDE x 11.75" DEEP RAM PLATE

SHUT HEIGHT: MIN. 6.062" to MAX 8.062", STROKE: 3.15"

AF3 3 x 3 AIR FEEDER, AF5 6 x 6 AIR FEEDER

DURANT DECOILER/ STRAIGHTENER, MODEL MDCC-1506



OBI Presses

BLISS

60 TON CAPACITY

32 TON CAPACITY

22 TON CAPACITY





Hydraulic Press

DENISON VERTICAL

25 TON CAPACITY

​

Deburring Equipment

Vibratory Bowl Tumblers:

2 Each, 15 Cubic Feet Capacity

2 Each, 5 Cubic Feet Capacity

​

BEAD BLASTING CHAMBER

​

Grinding Equipment

OKAMOTO HYDRAULIC SURFACE GRINDER  12" x 24"

OKAMOTO TOOL ROOM GRINDER  6" x 12"

CHEVALIER TOOL ROOM GRINDER  6" x 18"

​

Mills & Drilling Machines

TOOL ROOM MILLING MACHINES WITH DIGITAL READOUTS, 10" x 20 "

2 BRIDGEPORTS,1 HURCO

​

YUASA DRILL PRESS

​

Lathes

SAMSUNG SL35\1500 TURNING CENTER

30 HP, 15" Chuck, 2000 RPM

SWING OVER BED, 23.6"

MAX TUNING DIAMETER, 16.5"

MAX TURNING LENGTH, 60"

​

NARDINI TOOL ROOM LATHE, 22" SWING x 48" BETWEEN CENTERS

​

FEELER TOOL ROOM LATHE, 12" SWING x 24" BETWEEN CENTERS

​

Saws

H.E.M. HORIZONTAL BAND SAW, AUTOMATIC FEEDER,

12" DIAMETER CAPACITY

​

KALAMAZOO HORIZONTAL BAND SAW, 9" DIAMETER CAPACITY

​

KYSOR VERTICAL BAND SAW, 14" HEIGHT CAPACITY

​

Quality Control Equipment

OGP SMARTSCOPE, AVANT 400 CFOV MEASUREMENT MACHINE

NON-CONTACT CAMERA, AND FULL CONTACT TOUCH PROBE CAPABILITY

3D MEASURE-MIND , SMART-FIT, AND SMART-REPORT SOFTWARE

​

ASSORTED SURFACE PLATES, MISC. INDICATORS, GAGES,

​

HARDNESS TESTERS, ETC.

​

Heat Treating Ovens

CRESS, Model 102PF

CRESS, Model 107PF

​

Application Software*

JOBBOSS SHOP FLOOR MANAGEMENT SOFTWARE



UNIPOINT QUALITY MANAGEMENT SOFTWARE

​

SOLIDWORKS PROFESSIONAL 3D MODELING

​

LABEL VIEW  BARCODING SOFTWARE

​

MINITAB DATA ANALYSIS SOFTWARE

​

IGRAFX FLOWCHARTER PROCESS MAPPING SOFTWARE

​

​

​
